100mm Class 2 Gas Spring Cylinder Height Adjustment Compression Pressure 380-440n
Gas Springs Cylinder products Features:
Gas Springs Cylinder Company Introduction:
Changzhou Nantai gas spring Co., Ltd. was founded in 2004, which manufactures gas spring for swivel chairs, lockable gas spring and compression gas spring for furniture. The production workshop adopts automatic equipment for processing, which can accurately control the size and quality of our products.The QC department applies a variety of professional testing equipment, such as salt spray test machine, tensile test machine, durability test machine. Nantai brings in the advanced automatic CNC equipment and advanced testing instruments at home and abroad to fully meet customers’ different requirements of customized products.
Gas Springs Cylinder Highlights:
Reliable seal performance
Defect rate of less than 3‰
Smooth and noiseless stroke
Reliable product quality

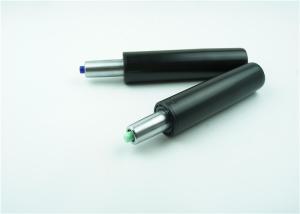

Gas Springs Cylinder Drawing and Picture:
C: Stroke length (mm)
L: Extended length (mm)
V: Outer tube length(mm)
X+Y: Taper length (mm)
| MODEL | L (MM) | C (MM) | V (MM) | X (MM) | Y (MM) | (F2)N |
| 40MM | 230 | 40 | 145 | 58 | 10 | 460 |
| 60MM | 275 | 60 | 160 | 58 | 10 | 460 |
| 80MM | 305 | 80 | 175 | 58 | 10 | 460 |
| 100MM | 347 | 100 | 195 | 58 | 10 | 440 |
| 120MM | 392 | 120 | 215 | 58 | 10 | 420 |
| 140MM | 414 | 140 | 225 | 58 | 10 | 420 |
| 160MM | 450 | 160 | 250 | 58 | 10 | 420 |
| 180MM | 525 | 180 | 275 | 58 | 10 | 420 |
| 200MM | 545 | 200 | 295 | 58 | 10 | 420 |
| 230MM | 680 | 230 | 370 | 58 | 10 | 420 |
| 260MM | 705 | 260 | 385 | 58 | 10 | 420 |
